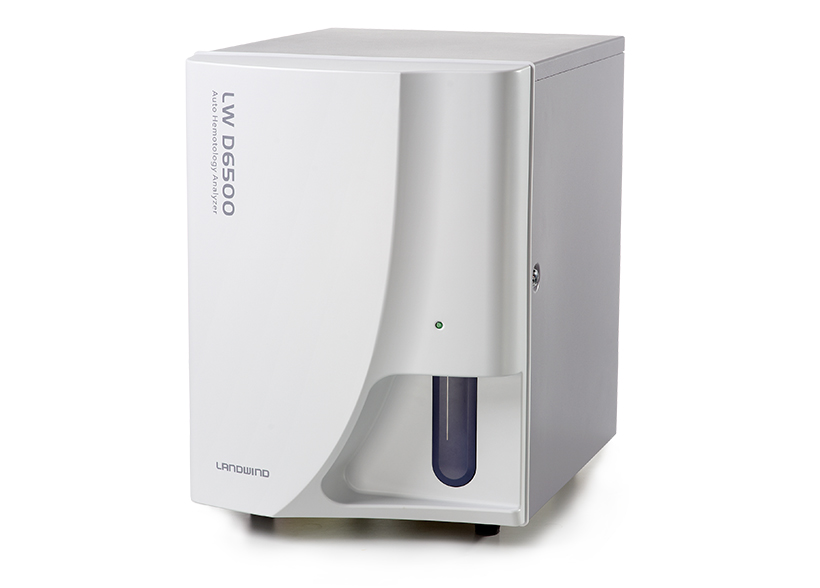

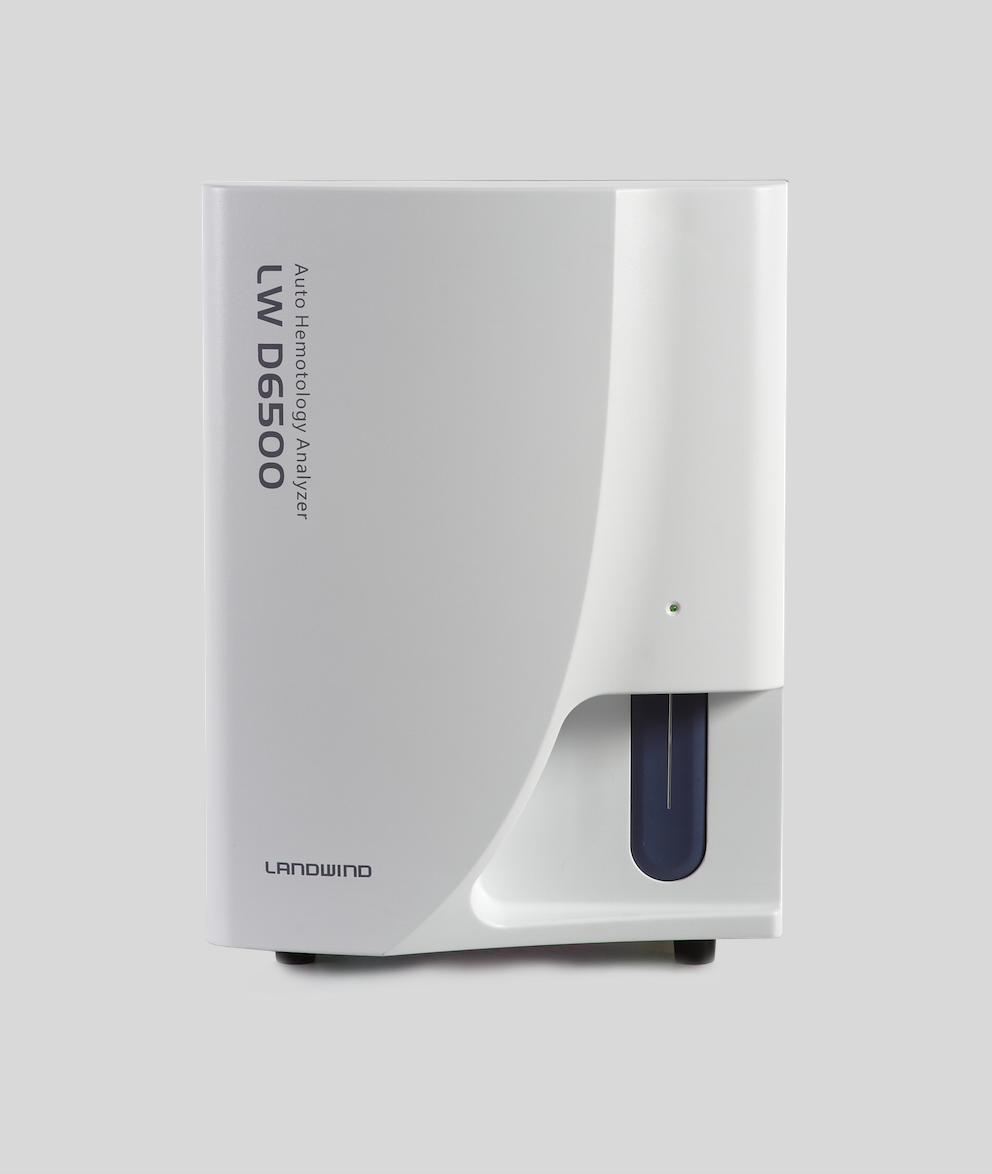

LW D6500

Home>Products>IVD>Hematology Analyzer

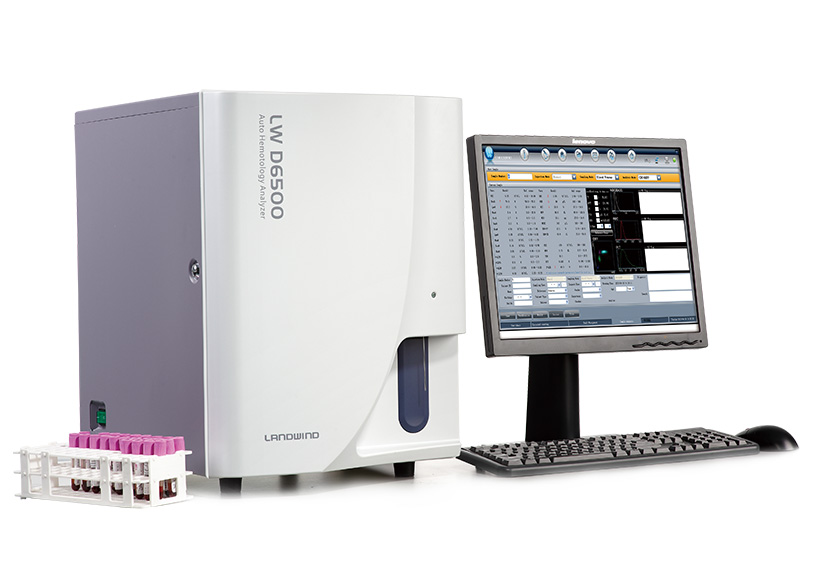

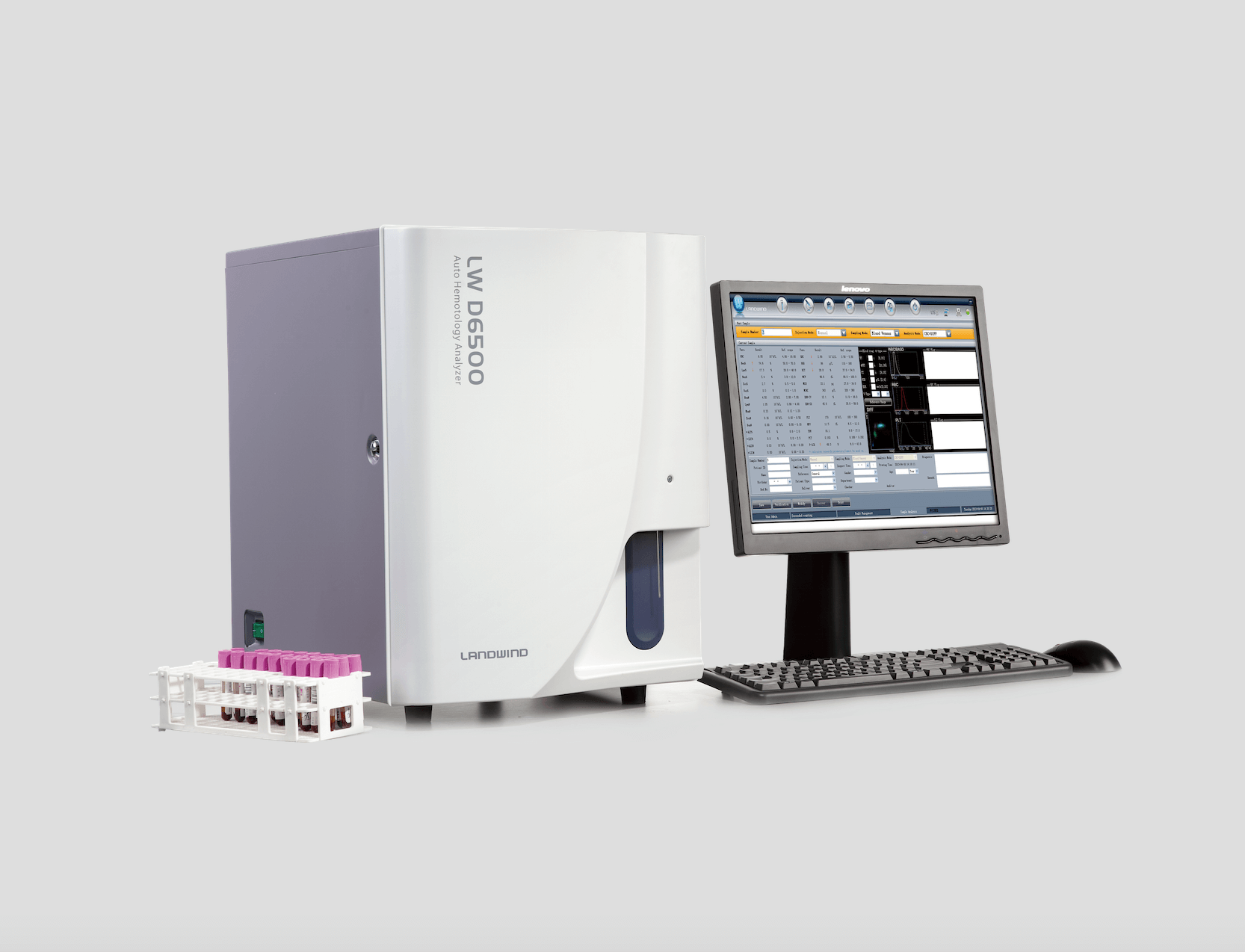

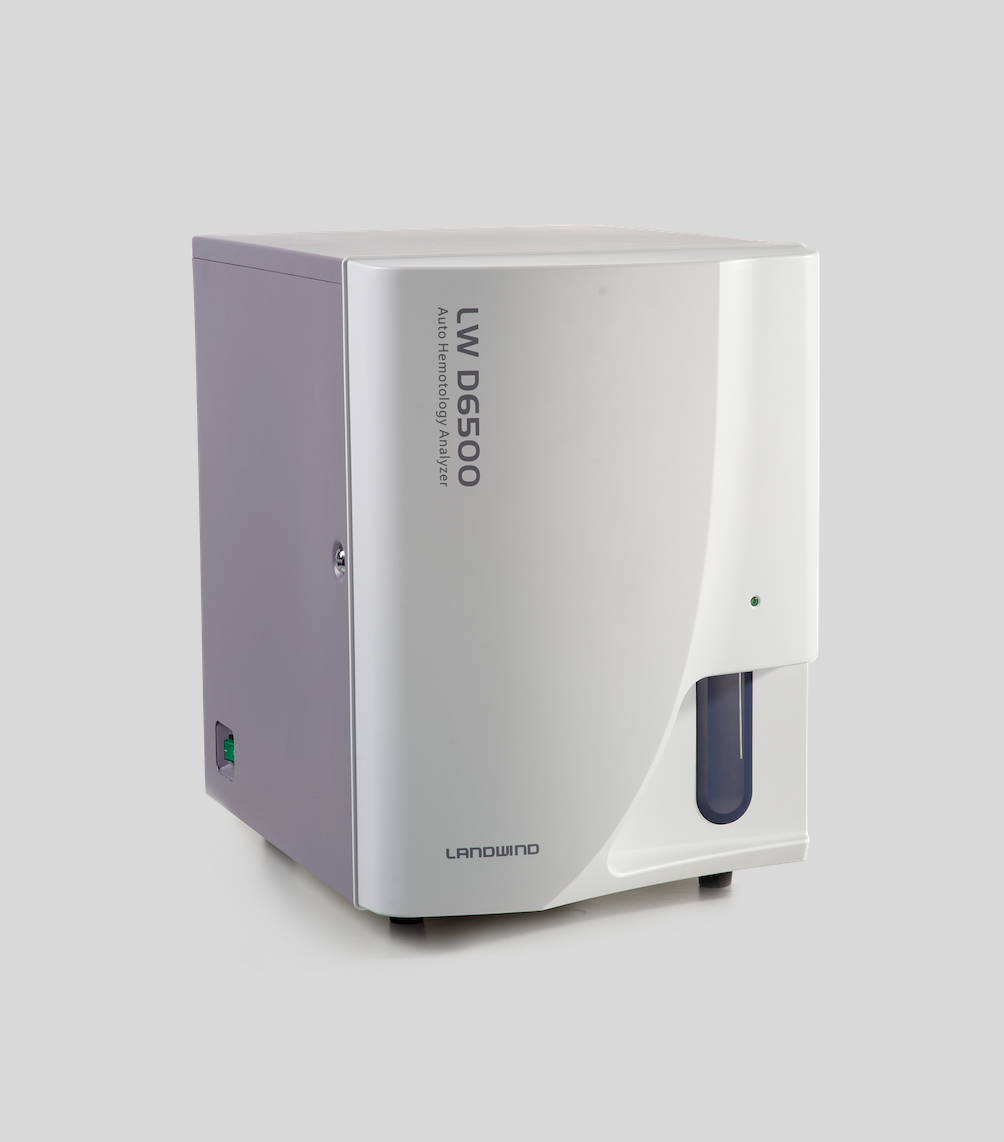

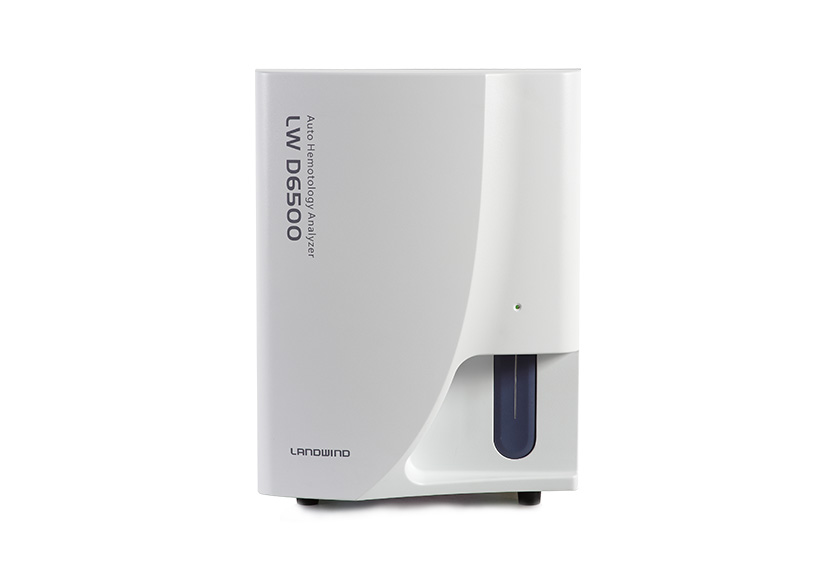

LW D6500 is the new generation 5-diff, hematology analyzer. It is a product encompassing the latest technology in optics, automation, mechanics and biology.

  • Features
  • Parameters
  • Technology

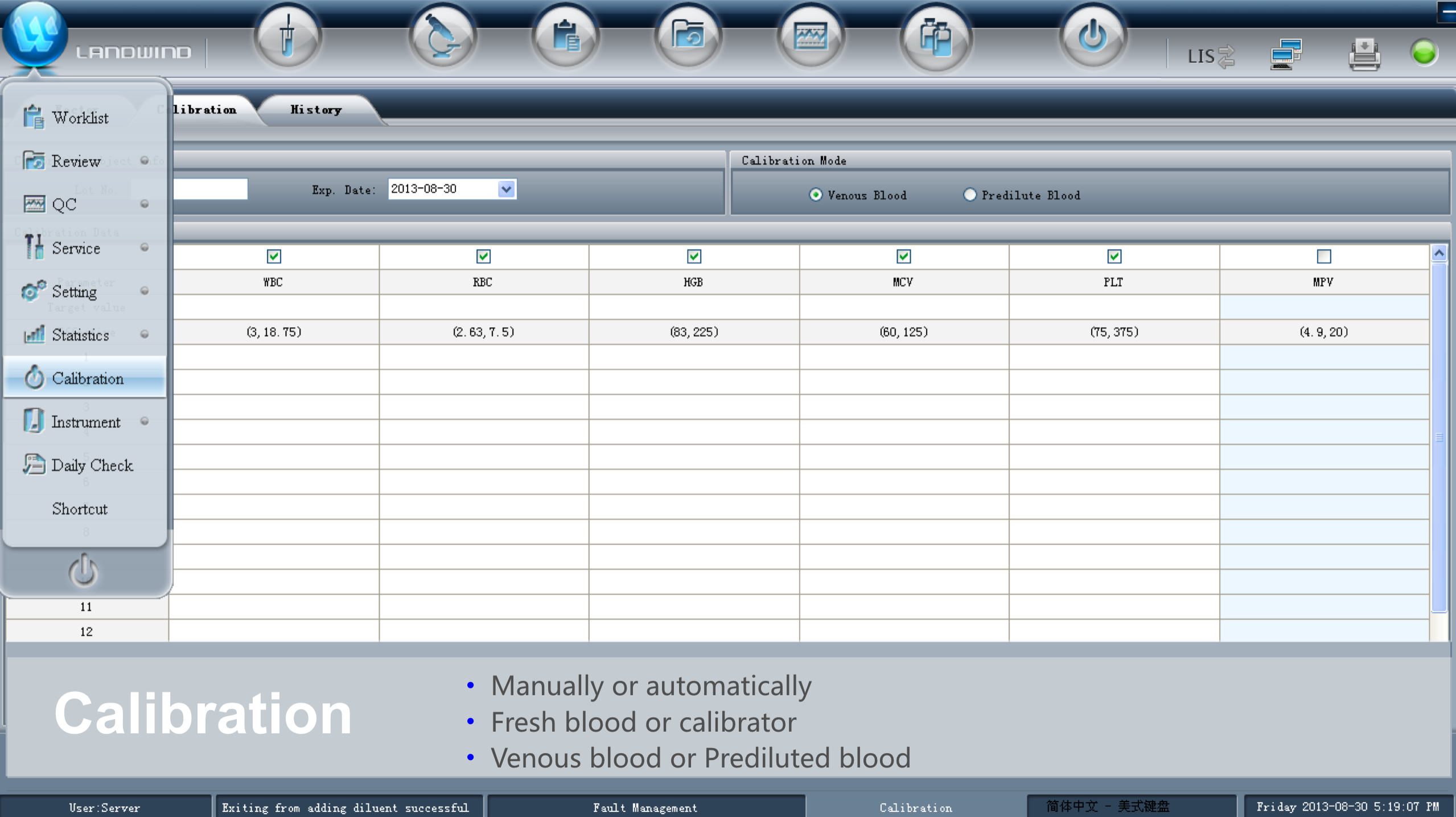

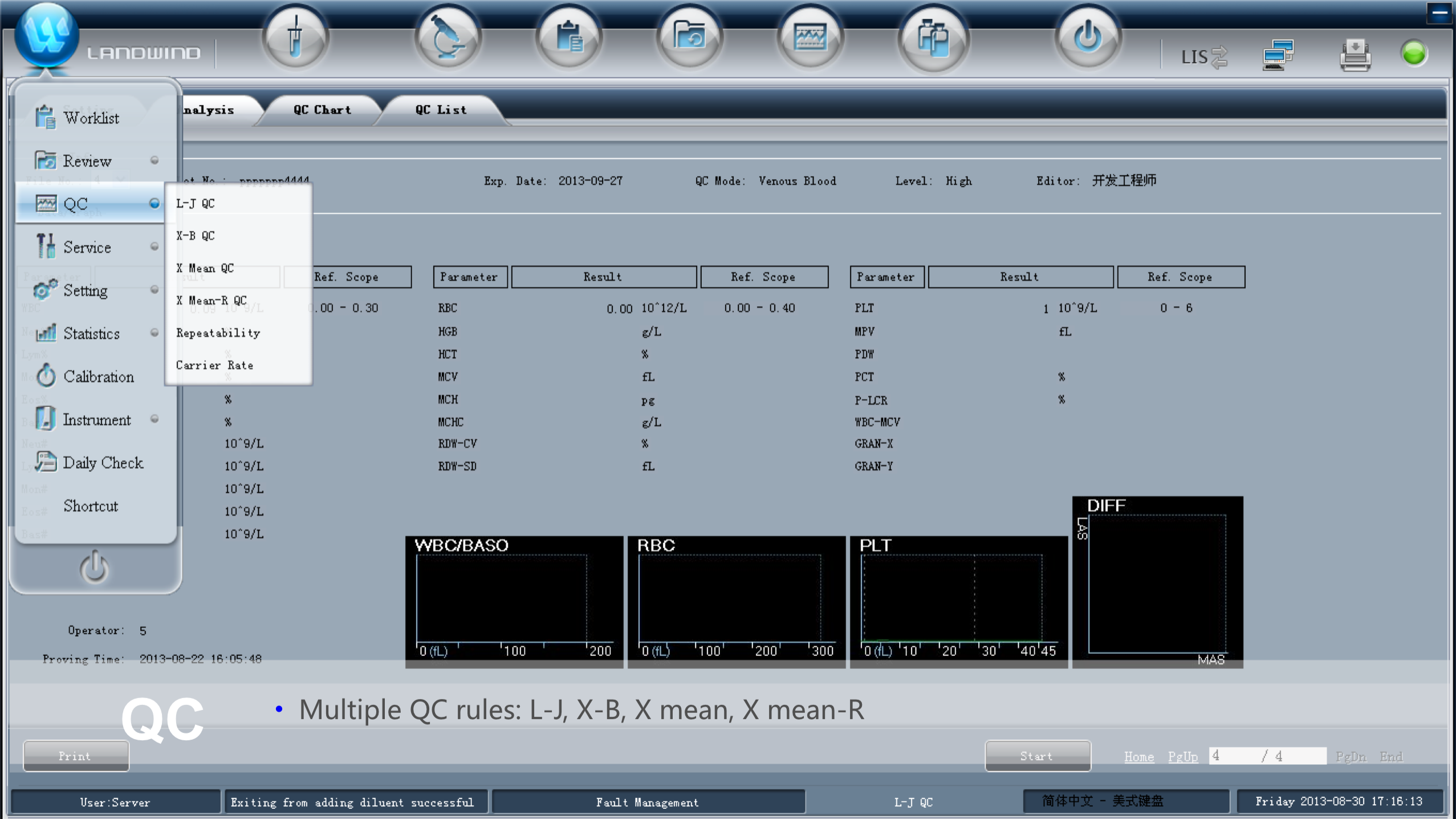

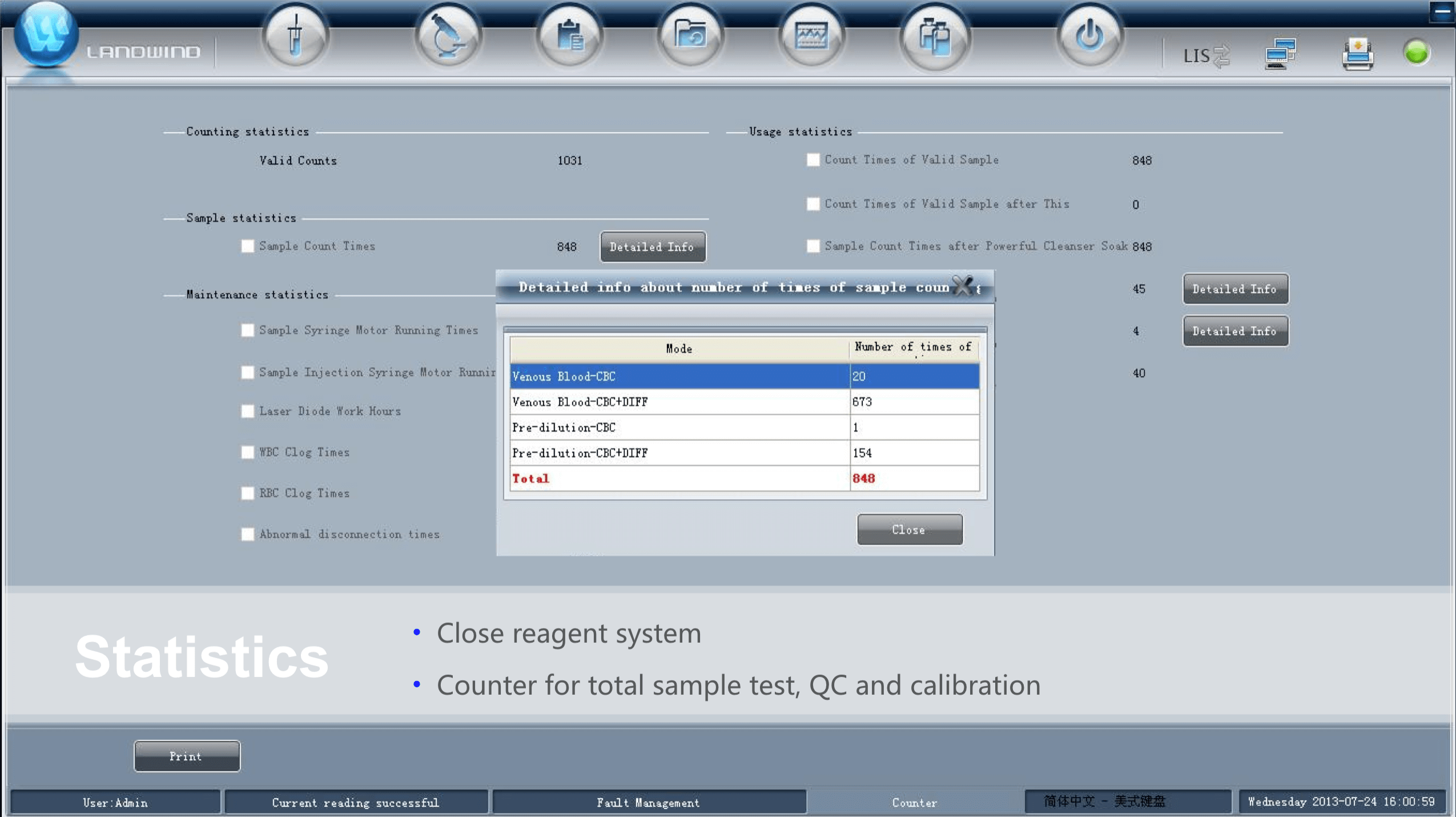

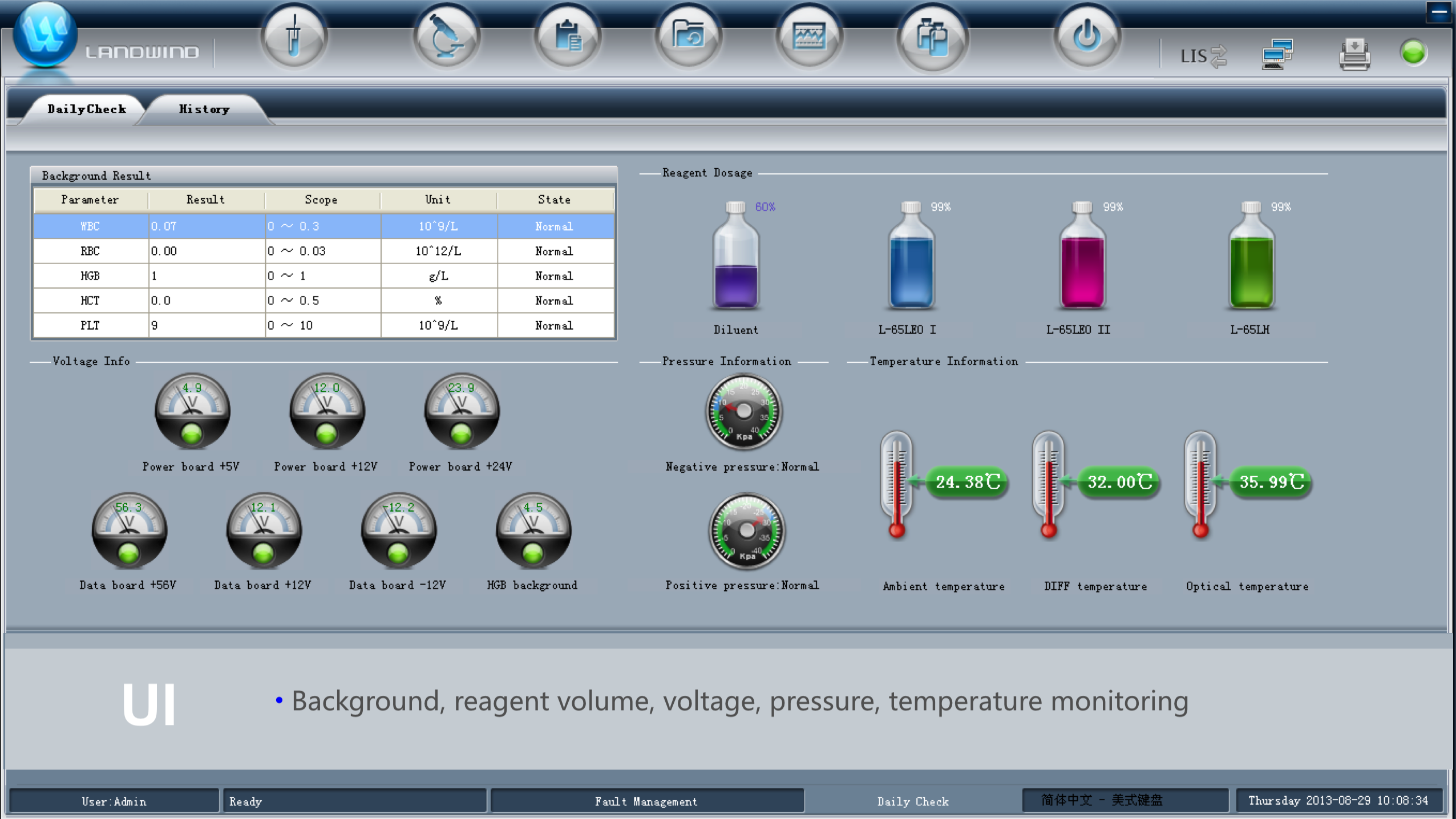

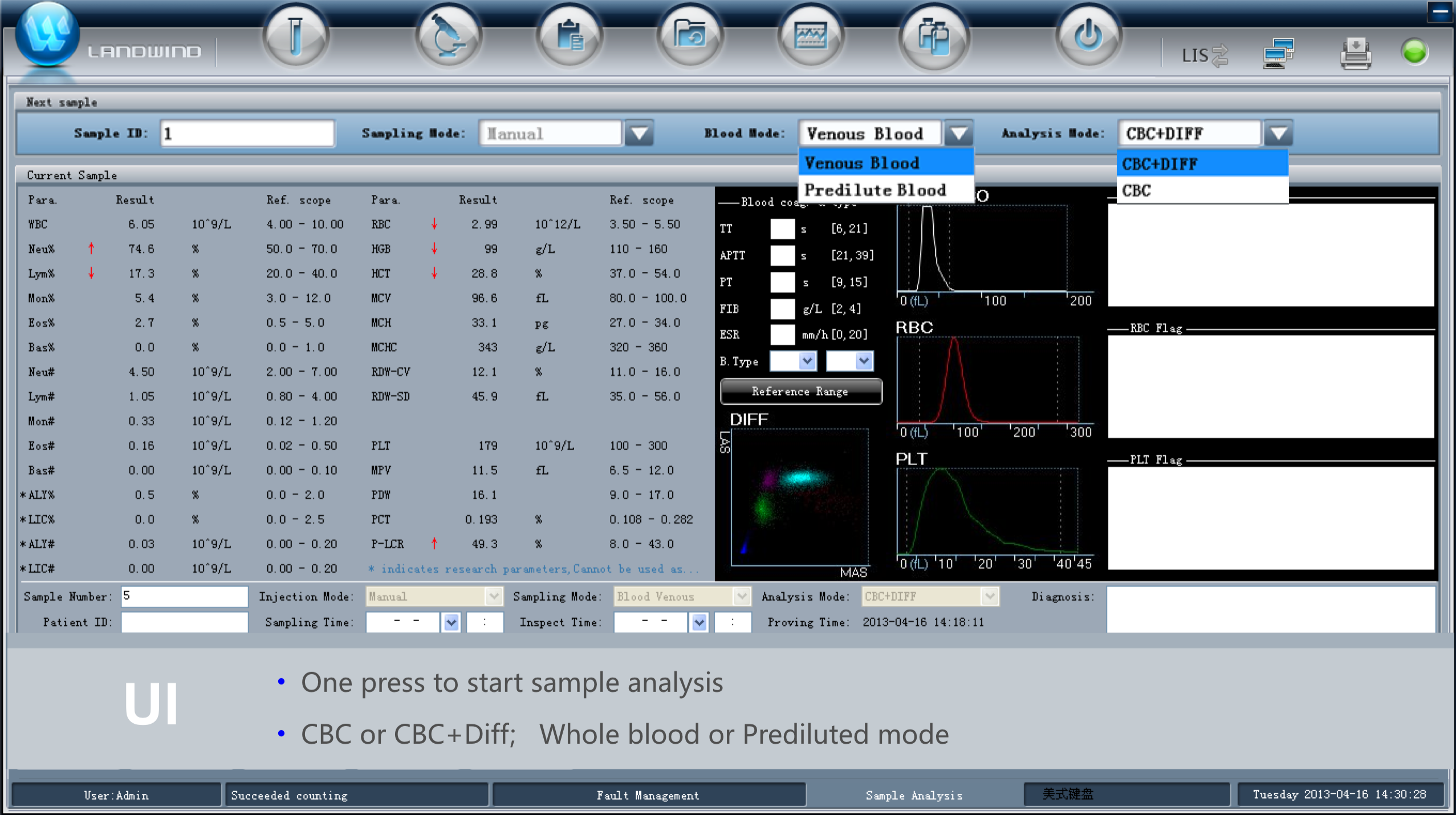

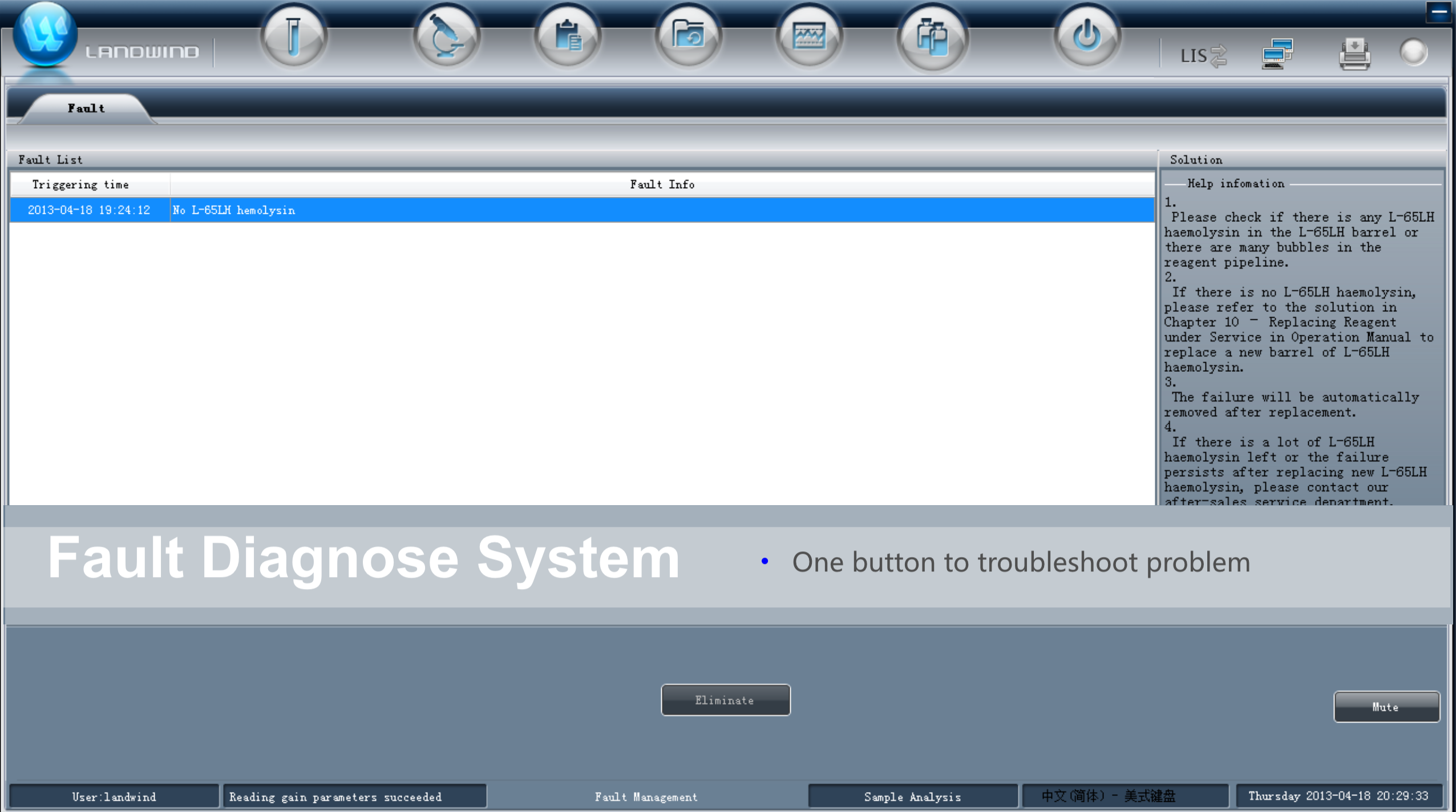

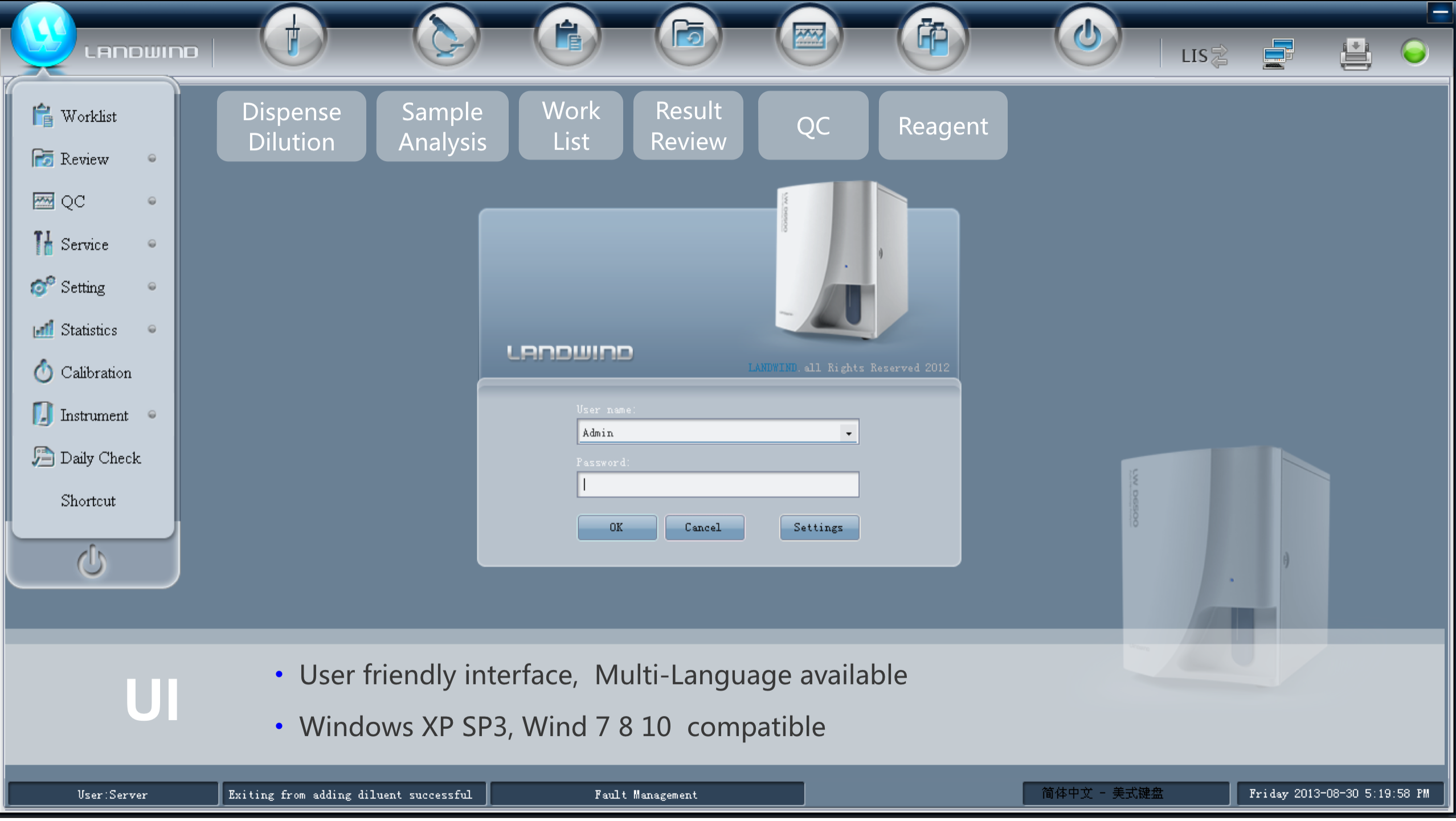

  • Software&Functions

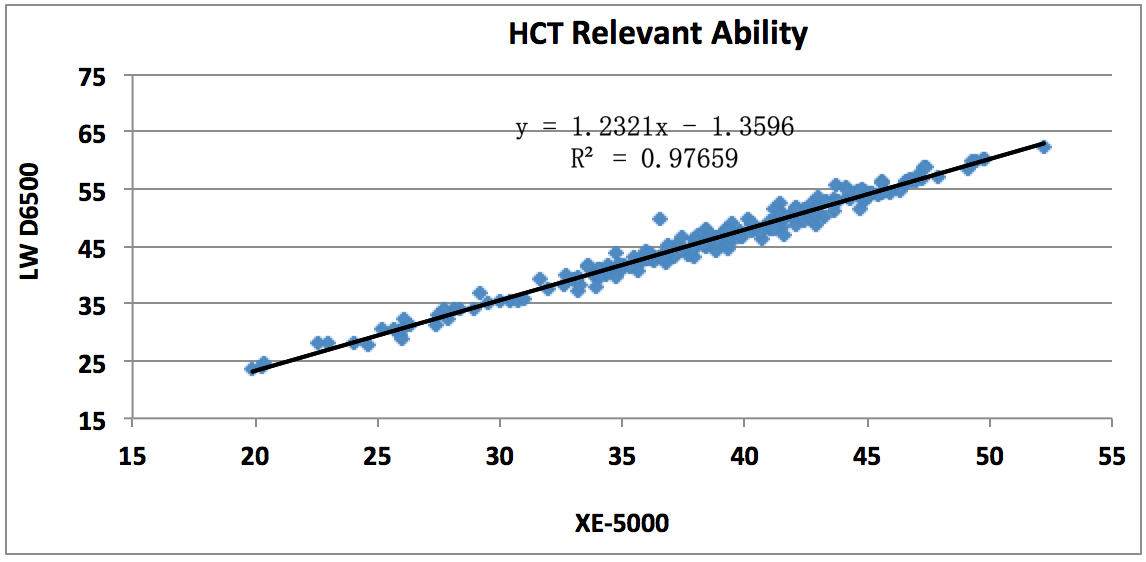

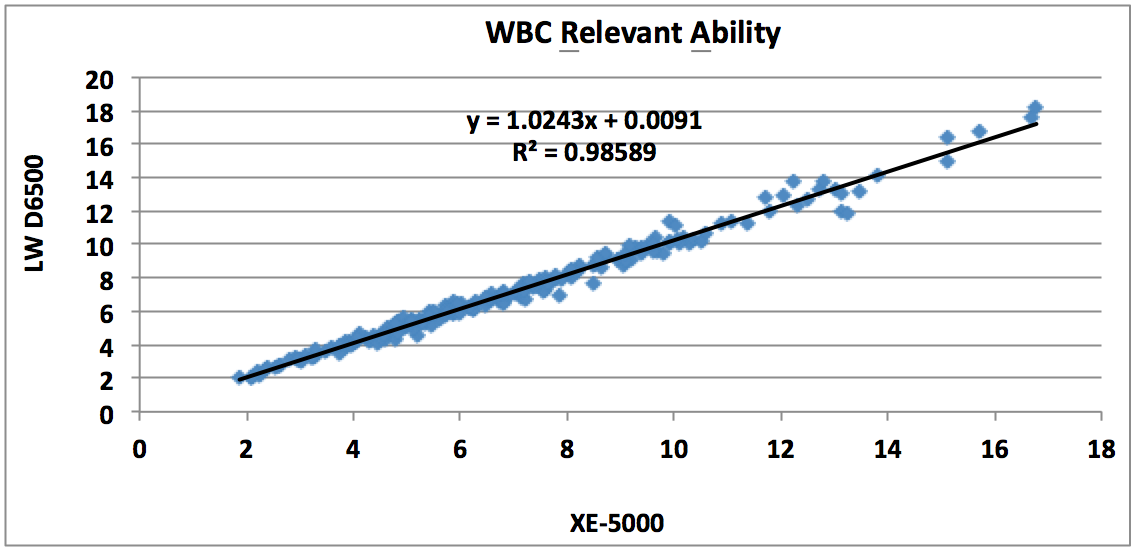

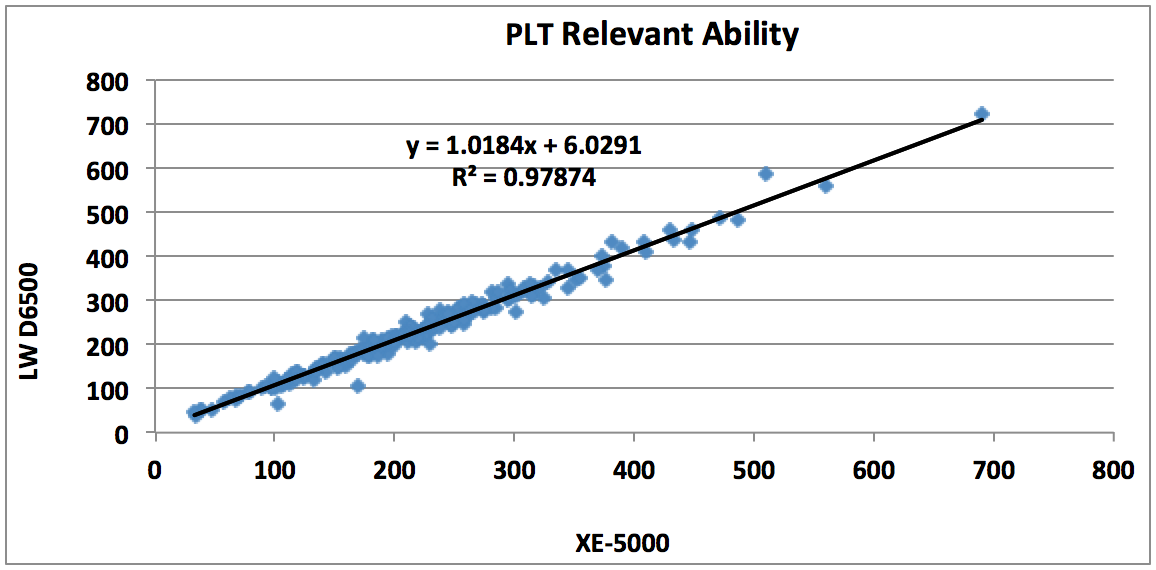

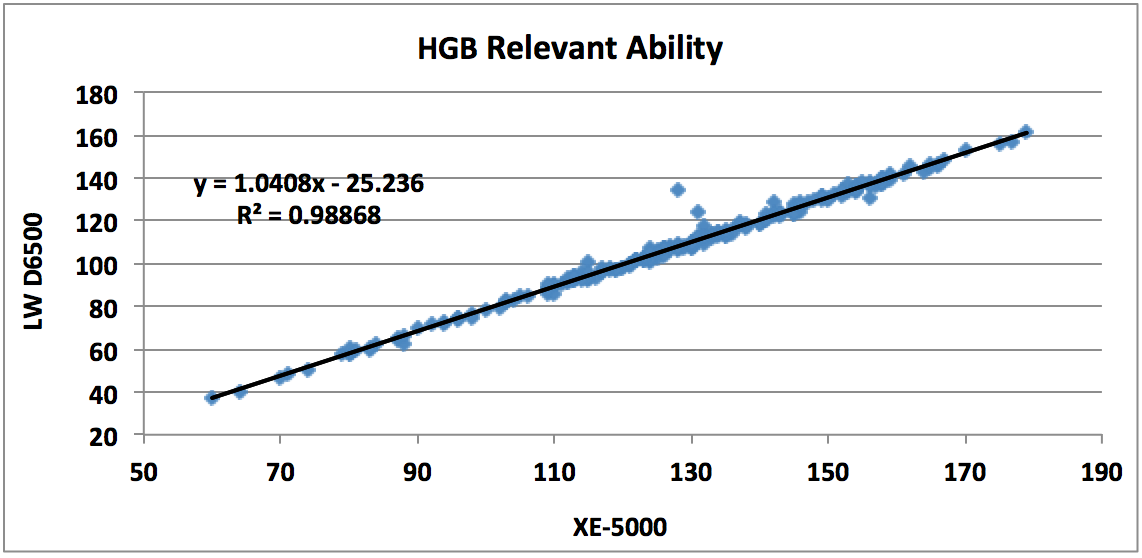

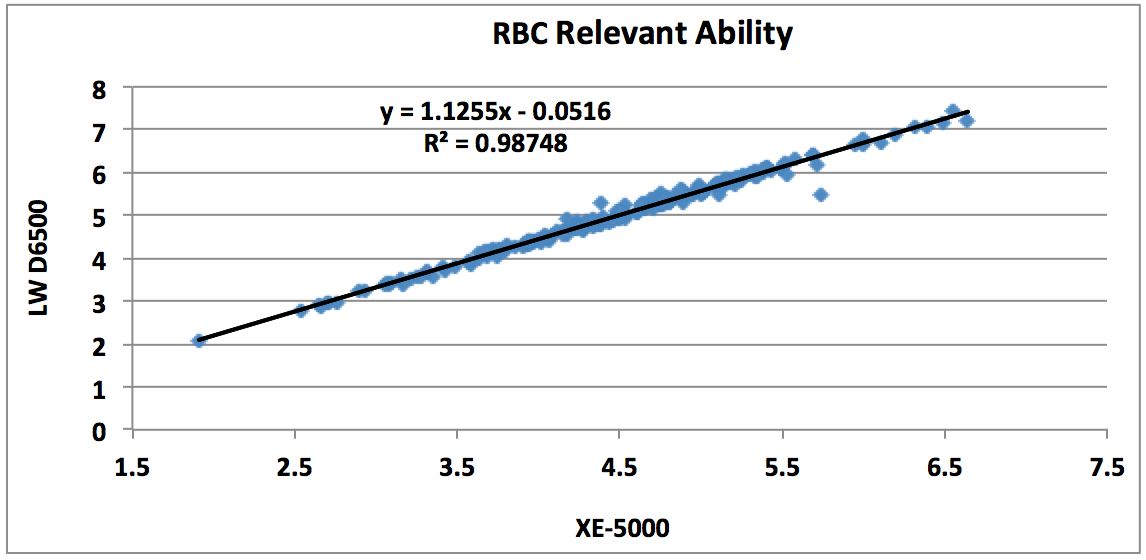

  • Clinical Test



•   WBC 5-differential, 28 parameters，1 scattergram，3 histograms

•  Throughput：60T/H

•  Only 16 μL blood sample for whole blood mode, 20uL for prediluented mode

•  Storing 100000 samples with all parameters，scattergram and histogram

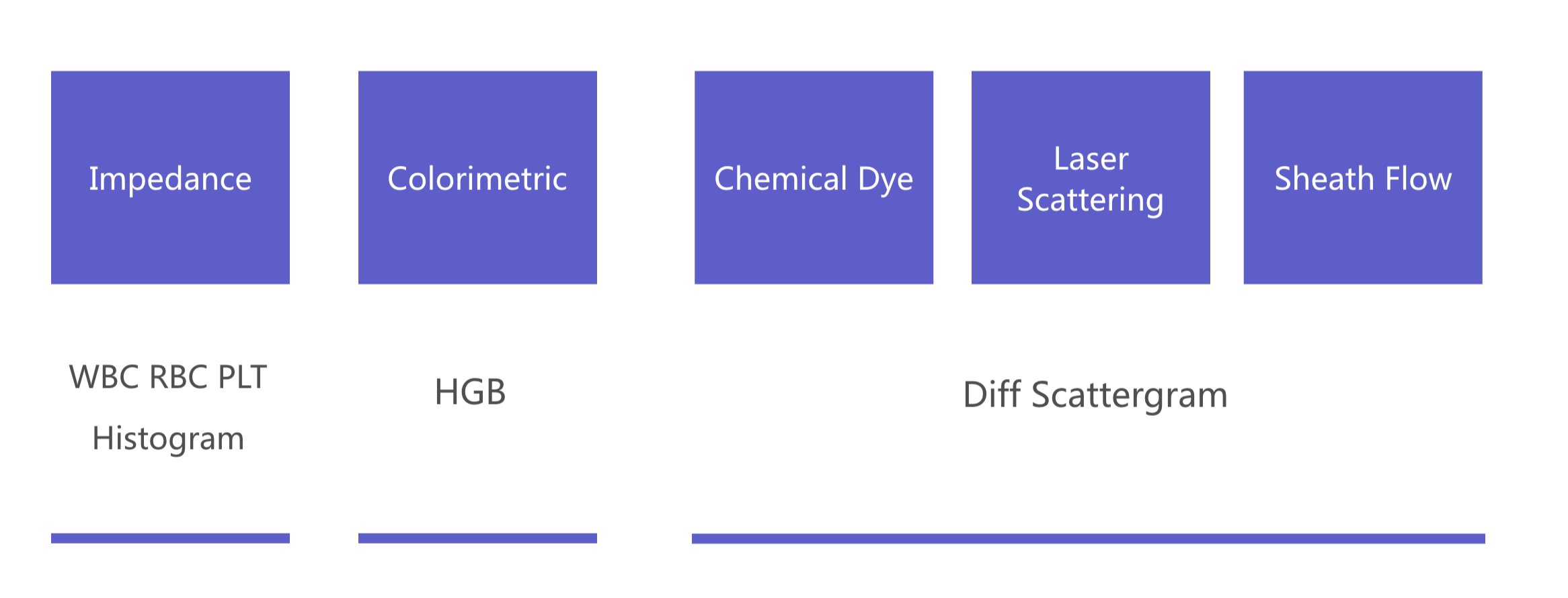

•  Semiconductor laser flow cytometric analysis + cytochemical dyeing method (WBC+5DIFF ), automatic pulse resistance method ( WBC/RBC/PLT )

•  Cyanide free colorimetric method (HGB )

•  4 kinds of reagents, low reagent consumption

WBC、NEU#、Lymph#、Mon#、Eos#、Bas#、NEU%、Lymph%、Mon%、Eos%、Bas%、RBC、HGB， HCT、MCV、MCH、MCHC、RDW-SD、RDW-CV、PLT、MPV、 PDW、PCT、P-LCR


Research Parameters

 ALY#、ALY%、LIC#、LIC%

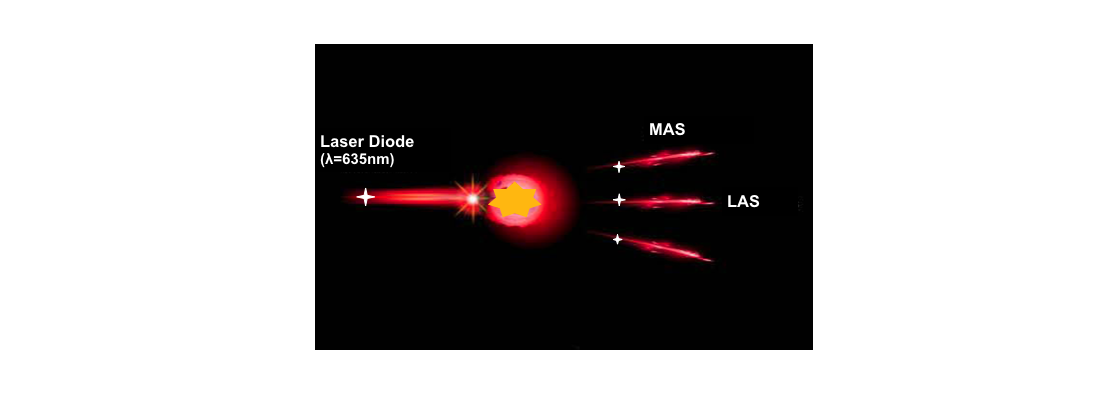

  • Middle angle scattering represents inner structure and granules of cell
  • Low angle scattering represents cell size

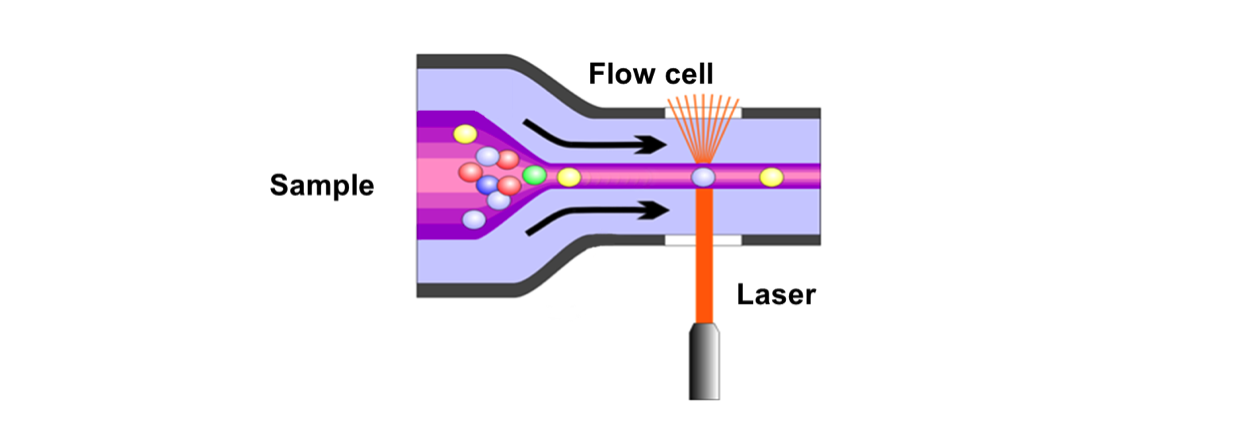

  • The cell stream is coated by the sheath flow
  • WBC passing through the flowcell one by one
  • Laser detects for WBC differential



  • Two categories of lyse dissolve the RBC and dye the WBC
  • WBC can be better differentiated under laser scattering

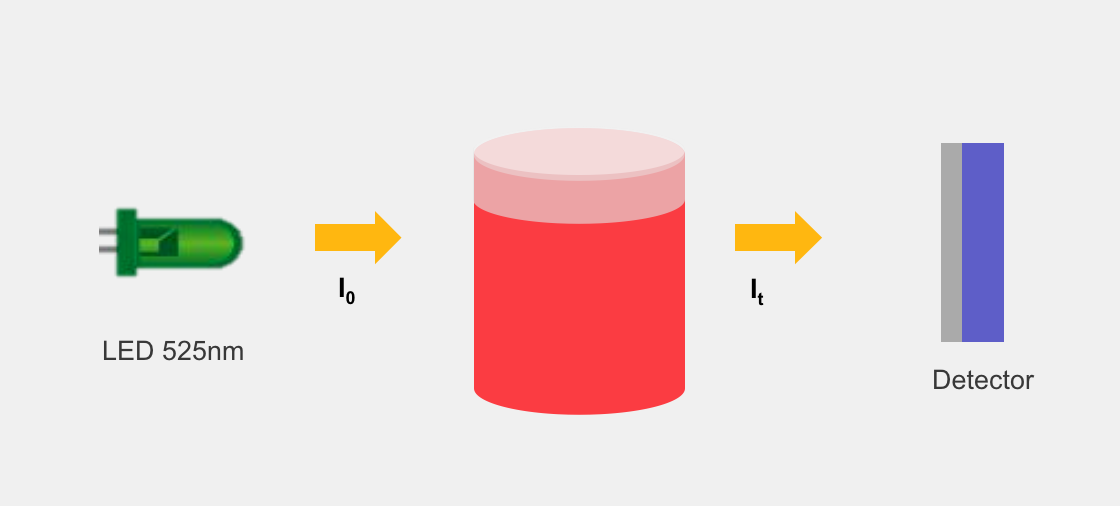

  • HGB concentration is calculated by colorimetric method
  • Cyanide free, no biohazard to human and environment

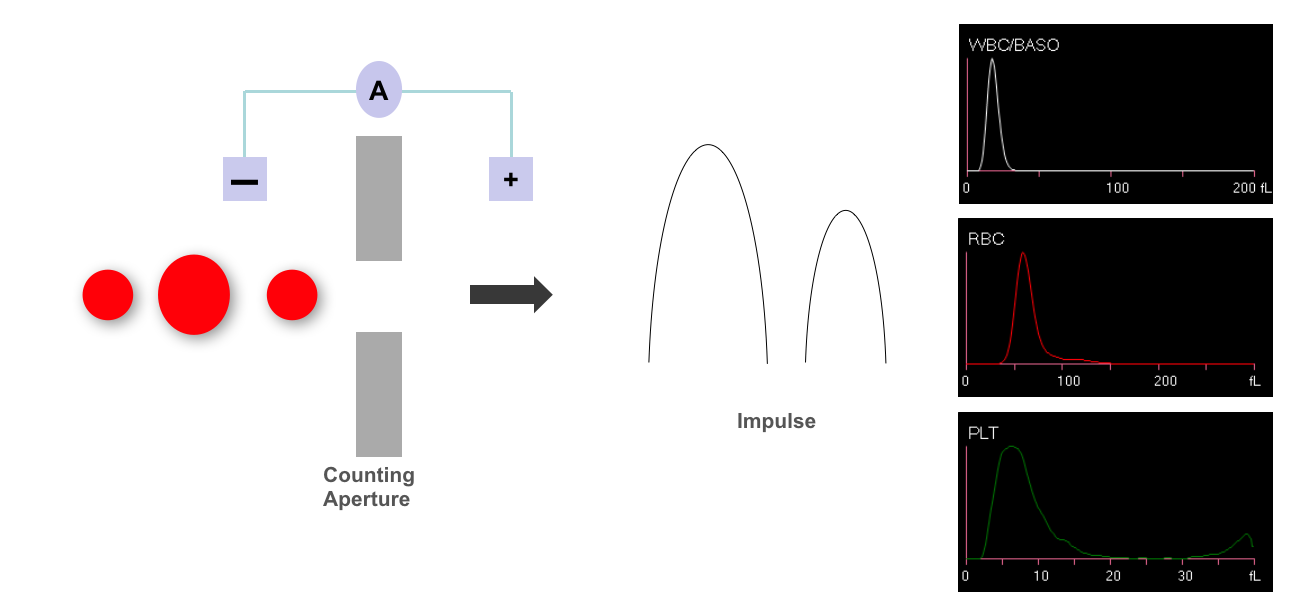

  • 2 counting chambers: one for WBC, the other for RBC/PLT
